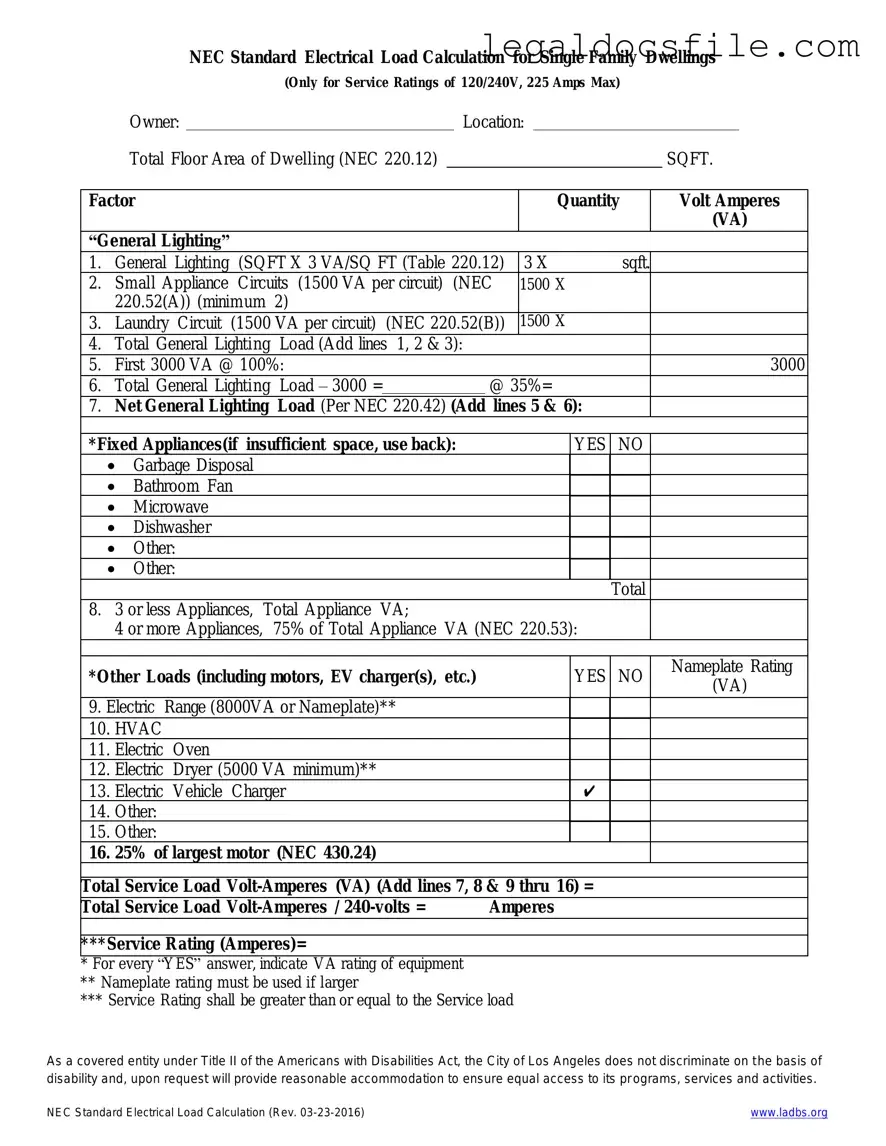

Printable LADBS NEC Standard Electrical Load Calculation Template in PDF

LADBS NEC Standard Electrical Load Calculation: Usage Instruction

The LADBS NEC Standard Electrical Load Calculation form is an essential document for ensuring that electrical systems are designed to meet the specific needs of a building, in accordance with the National Electrical Code (NEC). This form helps in determining the minimum electrical load requirements in a straightforward and organized manner, making sure that the building's electrical system is safe, reliable, and efficient. The accuracy of this calculation is crucial for both the safety of the building occupants and the optimal performance of the electrical system. Below are the steps necessary to fill out the form meticulously, ensuring that all relevant data is correctly entered and calculated.

1. Identify the Premises: Fill in the information regarding the name of the owner, address, and other identifying details of the building or space being evaluated.
2. Determine the General Lighting Load: Calculate the total square footage of the area being serviced. Use the NEC standards to allocate the correct wattage per square foot, which varies based on the type of occupancy or use of the space.
3. Calculate Specialty Equipment Loads: List and include the electrical load of all specialty equipment or appliances that will be permanently installed and require electrical power. This includes machinery, large appliances, and any other equipment relevant to the building's use.
4. Consider Motor and HVAC Loads: Identify the horsepower rating of all motors and the electrical requirements for heating, ventilation, and air conditioning (HVAC) systems. These are critical loads that often represent a significant portion of the total electrical demand.
5. HVAC Load Calculations: Perform detailed calculations for the HVAC system, considering factors such as square footage, insulation levels, window sizes, and geographical location. This step may require consultation with HVAC professionals or reliance on specialized calculation software.
6. Identify Service Voltage and Phase: Input the service voltage (e.g., 120/240V, 277/480V) and phase (single or three-phase) that will be used. This information is critical for correctly sizing the electrical service and components.
7. Calculate Total Demand Load: Sum up all the individual loads from previous steps, applying demand factors as specified by the NEC to arrive at the total demand load. This step determines the minimum electrical service size that will safely support the building's electrical needs.
8. Size Conductors and Overcurrent Protection: Based on the total demand load, select the appropriate size for the main service conductors and the overcurrent protection devices, ensuring they meet or exceed the calculated demand while complying with NEC specifications.
9. Review and Revise: Carefully review all entered information and calculations for accuracy and completeness. Make any necessary revisions to ensure the electrical system will be both safe and adequate for the building's requirements.
10. Final Verification: Sign and date the form, verifying that all information is accurate and complies with the NEC and local codes. This step often requires the signature of a licensed electrician or electrical engineer.

Filling out the LADBS NEC Standard Electrical Load Calculation form with precise and detailed information is crucial for creating a safe, efficient, and compliant electrical system. By following these steps, one ensures that all aspects of the building's electrical demands are considered, resulting in a well-planned and reliable electrical infrastructure. It is always advisable to consult with or hire a professional electrician or electrical engineer to assist in completing this form, especially for complex projects or when unfamiliar with local codes and standards.

What is the LADBS NEC Standard Electrical Load Calculation form used for?

The LADBS NEC Standard Electrical Load Calculation form is a crucial document utilized during the planning and approval stages of residential and commercial electrical projects in Los Angeles. It helps in determining the appropriate size for an electrical service to a building by calculating the total electrical load. This ensures that the electrical system is safe, efficient, and compliant with local and national electrical codes.

Who needs to complete the LADBS NEC Standard Electrical Load Calculation form?

Electrical contractors, engineers, or architects who are responsible for designing or installing electrical systems in new constructions or renovations within Los Angeles must complete this form. It's also required for those seeking permits for electrical work to ensure that the proposed electrical installations meet the necessary safety standards.

What information do I need to fill out on the form?

You'll need to provide detailed information about the electrical system's design, including types of fixtures, the total number of circuits, ratings of appliances, heating and cooling systems, and any motors or special equipment. Each section of the form guides you to account for different components of the electrical load, such as lighting, appliances, heating, and air conditioning.

How can I obtain the LADBS NEC Standard Electrical Load Calculation form?

The form is available through the Los Angeles Department of Building and Safety (LADBS) website. You can download the form in a printable PDF format to complete by hand or, in some cases, fill out electronically and submit online depending on the current offerings by LADBS.

Is it mandatory to use this form for all electrical projects?

Yes, for projects within Los Angeles, this form or an equivalent that meets the Los Angeles Department of Building and Safety standards must be used to ensure that all electrical work complies with local codes and the National Electrical Code (NEC). It's a critical step for securing the necessary permits and for inspections.

Can I submit the form online, or do I need to submit it in person?

Depending on the specific requirements at the time of your application, you may have the option to submit the form online through the LADBS online portal. However, for certain projects or in certain circumstances, in-person submission at a LADBS office may be required. Check the LADBS website for the most current submission guidelines.

What happens after I submit the form?

After submitting the form, it will be reviewed by LADBS to ensure that your electrical load calculations and plans meet all safety and code requirements. You may be asked to provide additional information or to modify your plans based on the review. Once approved, you'll be able to proceed with obtaining the necessary permits for your electrical work.

One of the most common mistakes people make when filling out the LADBS NEC Standard Electrical Load Calculation form is failing to double-check their math. This form, integral for ensuring that electrical systems are appropriately sized and safe, demands accuracy. However, in the rush to complete the paperwork, individuals often make simple arithmetic errors that can lead to significant miscalculations. Such mistakes can not only delay project approvals but can also jeopardize the safety of the electrical installation.

Another frequent error involves misunderstanding the terminology used on the form. The electrical field is rife with specialized language and abbreviations, and the load calculation form is no exception. For example, confusion often arises between terms like "VA" (volt-amperes) and "Watts", which, while closely related, are used differently in calculations. Misinterpreting these terms can result in incorrect load evaluations, potentially leading to undersized or oversized electrical systems.

Additionally, overlooking the inclusion of all necessary loads is a common oversight. The form requires a comprehensive account of all loads the electrical system will support, including lighting, appliances, and motor equipment. Frequently, individuals neglect to account for intermittent or future loads, which can significantly impact the overall electrical demand. This oversight can lead to electrical systems that are incapable of supporting all connected devices, risking overload and failure.

Submitting the form without reviewing local amendments or requirements is yet another pitfall. The NEC (National Electrical Code) serves as the baseline for electrical standards, but local jurisdictions often have amendments or additional requirements. By not verifying these local specifications before submission, there's a risk that the calculation will not comply with all necessary regulations, leading to potential fines or the need to redo the calculations according to local codes.

People also tend to miscalculate the size of the service or feeder required, either by overestimating or underestimating. This mistake usually stems from incorrect application of the NEC's demand factors or not properly applying adjustments for conditions of use. The consequence of this error is either an unnecessarily expensive system that is larger than needed or, worse, a system that fails to meet the minimum requirements for safety and functionality.

Last but not least, many individuals forget to sign or date the form or to include essential details like the project address or permit number. This administrative oversight can lead to delays in processing or even the outright rejection of the form. It’s a simple yet critical step in the process, underscoring the importance of thoroughness in every aspect of completing the LADBS NEC Standard Electrical Load Calculation form.

When applying for electrical permits or planning electrical systems for buildings, it's crucial to have a comprehensive understanding of the forms and documents that accompany the LADBS NEC Standard Electrical Load Calculation form. This document is pivotal in outlining the electrical load requirements of a building project, ensuring that designs meet the necessary safety and efficiency standards. However, to ensure a project proceeds without hitches, several other forms and documents are often filed alongside it. These serve various purposes, from detailing project specifics to ensuring compliance with local regulations. Let's explore some of these essential documents.

• Building Permit Application: This is the foundational document required to start the permitting process. It provides details about the project, the property owner, and the contractors involved.
• Electrical Plan: Accompanying the load calculation form, this detailed drawing outlines the proposed electrical system, including the layout of circuits, outlets, and fixtures.
• Panel Schedule: This document lists all circuits in a distribution panel and serves as a vital reference for installation and future troubleshooting.
• Energy Efficiency Standards Documentation: In many jurisdictions, projects must comply with specific energy efficiency standards. This documentation demonstrates how the proposed electrical installations contribute to the overall energy efficiency of the building.
• Property Owner’s Affidavit: This affidavit confirms the property owner's awareness and approval of the work being undertaken.
• Contractor’s Statement of Responsibility: It is a declaration by the electrical contractor asserting responsibility for ensuring that the work meets all applicable codes and standards.
• Equipment Specifications Sheets: These sheets provide detailed information on each electrical equipment or appliance to be installed, ensuring they match the calculated loads and are appropriate for the intended use.
• Inspection Request Form: Filed once the project is near completion, this form is a request for the necessary inspections to verify that the work complies with plans and codes.
• Title 24 Energy Forms: In California, for instance, these forms provide documentation that the project complies with the energy efficiency requirements set out under Title 24,part of the California Building Standards Code.

Each of these documents plays a pivotal role in the planning, execution, and approval of electrical installations and systems. By thoroughly preparing and submitting these documents, contractors and property owners ensure that their projects adhere to local codes, meet safety standards, and proceed smoothly. Understanding the purpose and requirements of each document helps streamline the permitting process, aiding in the efficient progress of construction projects.

• Mechanical Load Calculation Forms: Similar to the LADBS NEC Standard Electrical Load Calculation, Mechanical Load Calculation forms are used to determine the heating and cooling capacity needed for a building. They take into consideration factors like square footage, climate, and the building's insulation levels.

• Plumbing Fixture Count Sheets: These documents, while focused on plumbing, share similarities with the LADBS NEC form in their method of determining capacity requirements. They assess the number of fixtures needed in a building, based on occupancy and usage, to ensure the plumbing system is adequately designed.

• Building Permit Applications: Building permit applications require detailed information about a construction or renovation project, much like the Electrical Load Calculation form requires detailed electrical specifications. Both forms are integral to ensuring compliance with local building codes and standards.

• Energy Compliance Forms: These forms assess a building's compliance with energy standards, similar to how the LADBS NEC form evaluates electrical load for code compliance. They consider factors like insulation, window efficiency, and HVAC system performance.

• Structural Calculation Sheets: Used to ensure that a building's structural components can withstand expected loads, these sheets focus on the physical strength of materials, paralleling how electrical load forms calculate the capacity for electrical loads.

• Fire Safety Evaluation System (FSES) Forms: These forms evaluate a building's fire safety features against standard benchmarks. While focusing on fire safety, the evaluation process resembles the electrical load calculation by assessing adequacy and compliance with safety standards.

• Title 24 Energy Calculations: In California, Title 24 calculations ensure that construction projects meet specific energy efficiency standards. These calculations are akin to the NEC Electrical Load Calculations in their aim to ensure projects meet regulatory compliance for energy use.

• Site Development Plans: These comprehensive plans detail the use of land and the layout of buildings, parking, landscaping, and utilities. Similar to electrical load calculations, they ensure the development aligns with local zoning and development standards, including the capacity of site utilities.

When you are preparing to fill out the LADBS NEC Standard Electrical Load Calculation form, it's critical to approach this task with attention to detail and accuracy. By following these guidelines, you can ensure that your submission is both compliant and reflective of your actual electrical load needs. Here's a list of things you should and shouldn't do:

Things You Should Do

1. Review the entire form before starting to understand all the information required.
2. Gather all necessary documentation, including building plans and specifications, to accurately calculate loads.
3. Use a calculator or electrical load calculation software to ensure accuracy in your computations.
4. Consult with a professional electrician or engineer if you have any doubts or questions about your calculations.
5. Double-check your work for any errors or omissions before submitting the form.

Things You Shouldn't Do

1. Rush through the form without understanding each section's requirements.
2. Estimate or guess values instead of calculating them accurately.
3. Overlook the addition of future electrical load expansions that may affect your current calculation.
4. Ignore local codes and regulations that may impact your electrical load calculations.
5. Submit the form without reviewing it for completeness and accuracy.

By adhering to these guidelines, you'll be better prepared to complete the LADBS NEC Standard Electrical Load Calculation form properly. This not only facilitates a smoother review process but also ensures your electrical system is designed to meet both your needs and compliance standards. Remember, accuracy not only affects the safety of your electrical system but also its efficiency and reliability. Should you have any doubts, seeking advice from a professional is always a prudent step.

When dealing with the LADBS NEC Standard Electrical Load Calculation form, several misconceptions can lead to confusion. Understanding these can help individuals navigate the form more effectively and ensure compliance with the requirements.

• It’s too complex for non-professionals: Many people believe that the LADBS NEC Standard Electrical Load Calculation form is too complex for anyone but a professional electrician or engineer to understand. While it is technical, with guidance and patience, non-professionals can learn to complete it correctly.

• Only needed for large projects: Another common misconception is that this form is only necessary for large construction projects. In reality, it's required for a range of projects, including smaller renovations, to ensure electrical systems are safely designed.

• All sections must be filled out: Users often think that they must fill out every section of the form. However, only the sections relevant to your specific project need to be completed.

• Approval is guaranteed: Completing the form doesn't guarantee approval. The LADBS reviews submissions for compliance with the National Electrical Code (NEC) and local amendments. Approval depends on meeting these standards.

• One-time submission: It’s a common belief that you only need to submit the form once. Sometimes, further details or corrections are required, leading to additional submissions.

• No technical support is available: Many individuals assume they are on their own when filling out the form. In fact, the Los Angeles Department of Building and Safety (LADBS) offers guidance and support for those who need help understanding the form’s requirements.

• It’s the only form you need: People often think that this is the only form they need to submit for electrical permits. However, depending on the project, other forms or documents may be required.

• Immediate processing: There is an expectation that forms will be processed immediately upon submission. Processing times can vary based on the current workload and the complexity of the project. Patience is essential.

Correcting these misconceptions helps individuals approach the LADBS NEC Standard Electrical Load Calculation form with a better understanding and set realistic expectations for their project’s electrical design approval process.

When dealing with the LADBS NEC Standard Electrical Load Calculation form, understanding the essentials ensures accurate and compliant electrical load calculations. The process might seem daunting at first, but armed with the right information, tackling it becomes straightforward. Here are nine key takeaways that can guide you through filling out and using this important document.

• Accuracy is critical: Ensuring that all the information entered on the form is accurate can't be overstated. Incorrect entries can lead to improper electrical system design, risking safety and compliance issues.
• Understand the terms: Familiarize yourself with the terminology used in the form. Terms like "VA" (volt-amperes) and "demand factor" are crucial to the calculation process and accurately determining load requirements.
• Use the most recent form: Electrical codes and standards evolve, and using the most up-to-date version of the form ensures compliance with current regulations.
• Refer to NEC guidelines: The National Electrical Code (NEC) provides the foundation for the load calculation process. When in doubt, consult the NEC to ensure that your calculations align with national standards.
• Consider all load types: The form requires detailed information about various load types within a building, including lighting, heating, appliances, and motors. Overlooking any can result in inaccurate load calculations.
• Detailed layout is helpful: Before filling out the form, having a detailed layout or blueprint of the electrical system can simplify the process, providing a clear overview of all components and their requirements.
• Review and double-check: After completing the form, reviewing all entries for mistakes or omissions is wise. This step is crucial in preventing errors that could affect the electrical system's design and safety.
• Professional consultation: When in doubt, consulting with a licensed electrician or electrical engineer can provide clarification and ensure that the load calculation is done correctly.
• Keep records: After submitting the form, keeping a copy for your records is advised. This documentation can be invaluable for future reference or if any questions arise concerning the electrical system's load calculation.

Understanding and applying these key points when filling out and using the LADBS NEC Standard Electrical Load Calculation form plays a pivotal role in the successful planning and execution of electrical system installations. Keeping these guidelines in mind will facilitate a smoother process, ensuring safety and compliance with electrical codes and standards.
